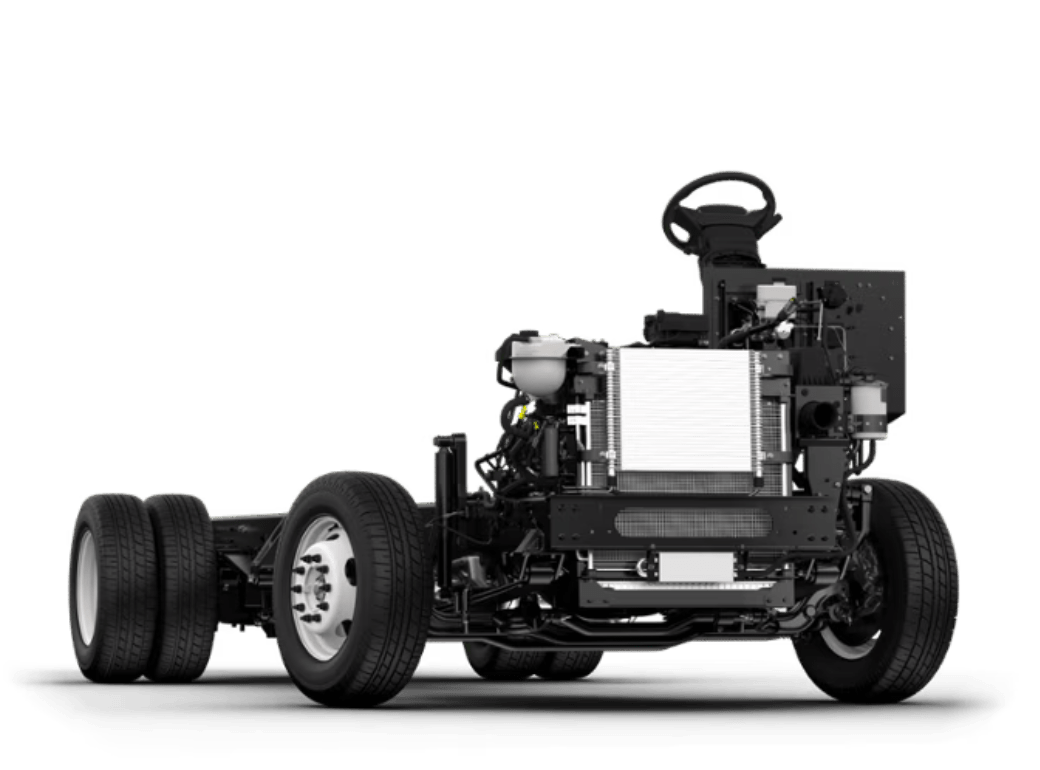

Ford F-59
Stripped Chassis
As Ford's highest-capacity stripped chassis, the Ford® F-59 Commercial Stripped Chassis can provide a strong base for your business with a heavy-duty steel frame that allows for easy upfitting. The F-59 is designed for bodies ranging from 13'-24' long and is the ideal chassis for business owners who need a walk-in van.
The F-59 Stripped Chassis' standard 7.3L V8 gas engine is paired with a TorqShift® 6-speed automatic transmission to generate 335 hp and 468 lb.-ft. of torque, giving you the raw power and durability required for heavy-duty applications. The single-channel, ladder-type frame on the F-59 is constructed of e-coated 36,000-PSI steel and offers low step-in height convenience and a 50-degree wheel cut for excellent maneuverability. And with five wheelbase options ranging from 158" to 208" as well as GVWRs ranging from 16,000 lbs. to 22,000 lbs. and a max payload of up to 15,610 lbs., the F-59 can be built to meet your unique demands. The available CNG/Propane Gaseous Engine Prep Package also provides the capability for power conversion to CNG or propane autogas for those looking for alternative fuel options.
Specifications
GVWR
- 16,000–22,000 lbs.
Drive Type
- 4x2
Max Payload
- 15,610 lbs.
Engine Options
- Ford 7.3L 2V DEVCT NA PFI V8 Gas (335 hp, 468 lb.-ft. torque)
- Ford 7.3L 2V DEVCT NA PFI V8 with CNG/Propane Gaseous Engine Prep Package
Transmission
- TorqShift 6-Speed Automatic with Overdrive
Wheelbase Options
- 158", 168", 178", 190", 208"
